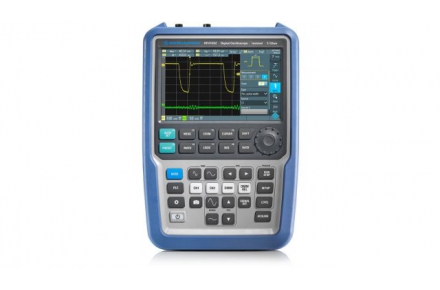

R&S®Scope Rider handheld oscilloscope

●Bandwidth: 60 MHz to 500 MHz
●Sample rate: up to 5 Gsample/s
●Memory depth: up to 500 kpts, 50 Mpts segmented memory
●ADC resolution: 10-bit
●Isolated channels (CAT IV 600 V (RMS) / CAT III 1000 V (RMS))

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTH1002	Bandwidth 60 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1004	Bandwidth 60 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1002 + RTH-B221	Bandwidth 100 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1004 + RTH-B241	Bandwidth 100 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1002 + RTH-B222	Bandwidth 200 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1004 + RTH-B242	Bandwidth 200 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1002 + RTH-B223	Bandwidth 350 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1004 + RTH-B243	Bandwidth 350 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1002 + RTH-B224	Bandwidth 500 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價
R&S®RTH1004 + RTH-B244	Bandwidth 500 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 500 kpts Optional MSO 8 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

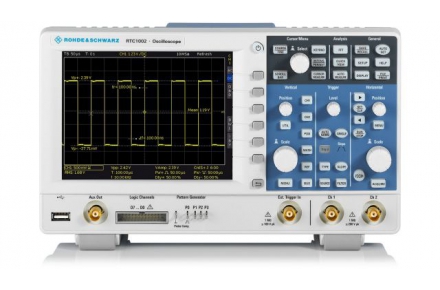

R&S®RTC1000 oscilloscope

●Bandwidth: 50 MHz to 300 MHz
●Max. sample rate: 2 Gsample/s
●Max. memory depth: 2 Msample
●MSO: 8 digital channels, optional, retrofittable
●Pattern generator: 4-bit patterns up to 50 Mbit/s

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTC1002	Bandwidth 50 MHz Channels 2 Sample rate 2 Gsample Max. memory depth 2 Mpts Optional MSO 8 digital channels	加入詢價
R&S®RTC1002 + RTC-B220	Bandwidth 70 MHz Channels 2 Sample rate 2 Gsample Max. memory depth 2 Mpts Optional MSO 8 digital channels	加入詢價
R&S®RTC1002 + RTC-B221	Bandwidth 100 MHz Channels 2 Sample rate 2 Gsample Max. memory depth 2 Mpts Optional MSO 8 digital channels	加入詢價
R&S®RTC1002 + RTC-B222	Bandwidth 200 MHz Channels 2 Sample rate 2 Gsample Max. memory depth 2 Mpts Optional MSO 8 digital channels	加入詢價
R&S®RTC1002 + RTC-B223	Bandwidth 300 MHz Channels 2 Sample rate 2 Gsample Max. memory depth 2 Mpts Optional MSO 8 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

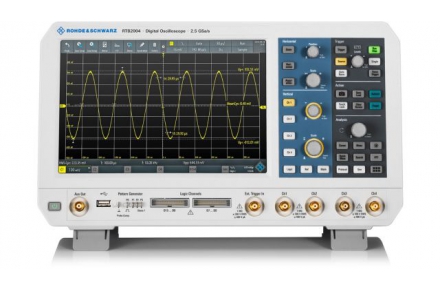

R&S®RTB2000 oscilloscope

●Bandwidth: 70 MHz to 300 MHz
●Sample rate: up to 2.5 Gsample/s
●Memory depth: up to 20 Msample
●ADC resolution: 10 bit
●Display: 10.1" capacitive touchscreen

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTB2002	Bandwidth 70 MHz Channels 2 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2004	Bandwidth 70 MHz Channels 4 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2002 + RTB-B221	Bandwidth 100 MHz Channels 2 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2004 + RTB-B241	Bandwidth 100 MHz Channels 4 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2002 + RTB-B222	Bandwidth 200 MHz Channels 2 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2004 + RTB-B242	Bandwidth 200 MHz Channels 4 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2002 + RTB-B223	Bandwidth 300 MHz Channels 2 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTB2004 + RTB-B243	Bandwidth 300 MHz Channels 4 Sample rate 2.5 Gsample/s Max. memory depth 20 Mpts Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

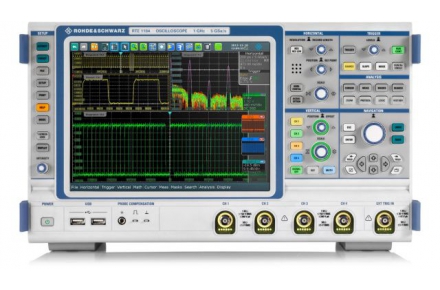

R&S®RTE1000 oscilloscope

●Bandwidth: 200 MHz to 2 GHz
●Sample rate: 5 Gsample/s
●Max. memory depth: 200 Msample
●Vertical resolution: up to 16-bit
●MSO: 16 digital channels, optional, retrofittable

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTE1022	Bandwidth 200 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1024	Bandwidth 200 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1032	Bandwidth 350 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1034	Bandwidth 350 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1052	Bandwidth 500 MHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
VR&S®RTE1054	Bandwidth 500 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1102	Bandwidth 1 GHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1104	Bandwidth 1 GHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1152	Bandwidth 1.5 GHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1154	Bandwidth 1.5 GHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1202	Bandwidth 2 GHz Channels 2 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價
R&S®RTE1204	Bandwidth 2 GHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 200 Mpts Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

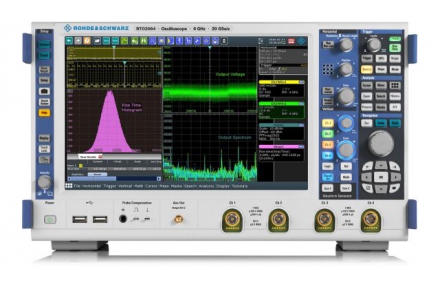

R&S®RTO2000 oscilloscope

●Bandwidth: 600 MHz to 6 GHz
●Max. sample rate: 20 Gsample/s
●Max. memory depth: 2 Gsample
●Up to 16-bit vertical resolution
●MSO: 16 digital channels, optional, retrofittable

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTO2002	Bandwidth 600 MHz Channels 2 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2004	Bandwidth 600 MHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2012	Bandwidth 1 GHz Channels 2 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2014	Bandwidth 1 GHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2022	Bandwidth 2 GHz Channels 2 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2024	Bandwidth 2 GHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2032	Bandwidth 3 GHz Channels 2 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2034	Bandwidth 3 GHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2044	Bandwidth 4 GHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTO2064	Bandwidth 6 GHz Channels 4 Sample rate 10 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

Instant insight meets in-depth information

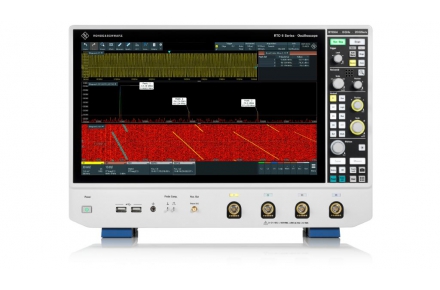

R&S®RTO6 oscilloscope

●6 GHz maximum bandwidth
●1 million waveforms per second
●9.4 ENOB for ultimate signal integrity
●2 Gpoints maximum memory
●Exclusive frequency zone trigger

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTO64	Bandwidth 600 MHz - 6 GHz Channels 4 Sample rate up to 20 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

R&S®RTP oscilloscope

Bandwidth: 4 GHz to 16 GHz
●Max. sample rate: 40 Gsample/s
●Max. memory depth: 2 Gsample
●Realtime deembedding; Up to 16 bit resolution
●All trigger events at full bandwidth
●Promo oscilloscopes10 years oscilloscopes3 year warranty extensionMulti domain iconHD 16 bit

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®RTP044	Bandwidth 4 GHz Channels 4 Sample rate 40 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTP064	Bandwidth 6 GHz Channels 4 Sample rate 40 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTP084	Bandwidth 8 GHz Channels 4 Sample rate 40 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTP134	Bandwidth 13/8 GHz Channels 2/4 Sample rate 40 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價
R&S®RTP164	Bandwidth 13/8 GHz Channels 2/46 Sample rate 40 Gsample/s Max. memory depth 2 Gpts Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE

Next generation oscilloscope for accelerated insight

R&S®MXO 4 Oscilloscope

●Bandwidth: 200 MHz - 1.5 GHz
●World’s first oscilloscope with an update rate > 4.5 million waveforms per second
●Industry-leading system architecture: 18-bit vertical resolution/12-bit ADC
●Deepest in class standard memory: 400 Mpoints
●Industry leading spectrum acquisition rate of 45,000 FFT/s

詳細規格型號清單/詢價

更多型號規格

型號規格	描述	加入詢價
R&S®MXO44-242	Bandwidth 200 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 400 Mpts per channel Optional MSO 16 digital channels	加入詢價
R&S®MXO44-243	Bandwidth 350 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 400 Mpts per channel Optional MSO 16 digital channels	加入詢價
R&S®MXO44-245	Bandwidth 500 MHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 400 Mpts per channel Optional MSO 16 digital channels	加入詢價
R&S®MXO44-2410	Bandwidth 1 GHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 400 Mpts per channel Optional MSO 16 digital channels	加入詢價
R&S®MXO44-2415	Bandwidth 1.5 GHz Channels 4 Sample rate 5 Gsample/s Max. memory depth 400 Mpts per channel Optional MSO 16 digital channels	加入詢價

不確定需求規格?立即點擊讓我們協助您 CLOSE
