Signal and spectrum analyzer

The Rohde & Schwarz signal and spectrum analyzer portfolio

High-performance solutions for a multitude of use cases

The Rohde & Schwarz signal and spectrum analyzer portfolio offers options ranging from low-cost, yet powerful 1 GHz analyzers to handheld and mid-range models to full-featured 85 GHz spectrum analyzers. Designed by the RF experts at Rohde & Schwarz, all spectrum analyzers feature exceptional signal integrity, high value and excellent reliability.

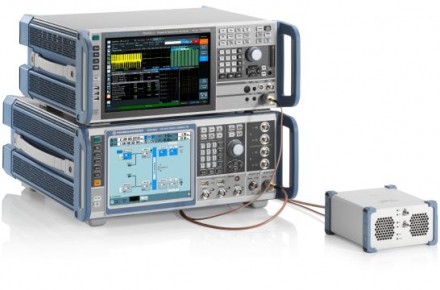

R&S®FSW signal and spectrum analyzer
Setting standards in innovation and usability
R&S®FSW signal and spectrum analyzer
●Unparalleled low phase noise and best sensitivity on the market
●8.3 GHz internal analysis bandwidth
●800 MHz real-time analysis bandwidth
●SCPI recorder simplifies code generation
●New flat Windows 10 design and multitouch gesture support
更多型號規格
型號規格描述加入詢價
R&S®FSW8Frequency range 2 Hz - 8 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 512 MHz
加入詢價
R&S®FSW13Frequency range 2 Hz - 13.6 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 512 MHz
加入詢價
R&S®FSW26Frequency range 2 Hz - 26.5 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 2000 MHz
加入詢價
R&S®FSW43Frequency range 2 Hz - 43.5 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 8312 MHz
加入詢價
R&S®FSW50Frequency range 2 Hz - 50 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 8312 MHz
加入詢價
R&S®FSW67Frequency range 2 Hz - 67 GHz
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 8312 MHz
加入詢價
R&S®FSW85Frequency range 2 Hz - 85 GHz (with R&S®FSW-B90G option: 2 Hz - 90 GHz)
Phase noise < –136 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Max. analysis bandwidth 8312 MHz
加入詢價

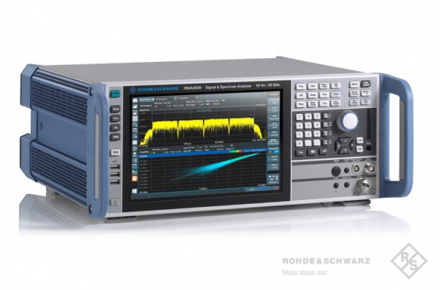

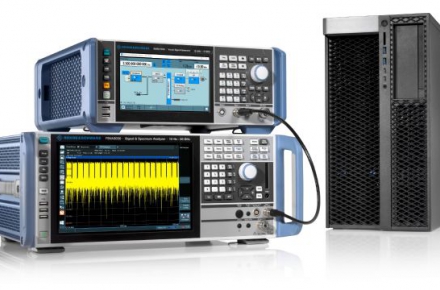

R&S®FSVA3000 signal and spectrum analyzer
R&S®FSVA3000 signal and spectrum analyzer
●Frequency range from 2 Hz to 4, 7.5, 13.6, 30 or 44 GHz
●Analysis bandwidth up to 1 GHz
●SSB phase noise at 10 kHz offset (1 GHz): –127 dBc/Hz
●GUI with multi-touch, SCPI recorder and event based actions
●Options for analog and digital signal analysis, including 5G NR
更多型號規格
型號規格描述加入詢價
R&S®FSVA3004Frequency range 10 Hz - 4 GHz (2 Hz - 4 GHz with R&S®FSV3-B710 option)
Phase noise < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
Max. analysis bandwidth 400 MHz
加入詢價
R&S®FSVA3007Frequency range 10 Hz - 7.5 GHz (2 Hz - 7.5 GHz with R&S®FSV3-B710 option)
Phase noise < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
Max. analysis bandwidth 400 MHz
加入詢價
R&S®FSVA3013Frequency range 10 Hz - 13.6 GHz (2 Hz - 13.6 GHz with R&S®FSV3-B710 option)
Phase noise < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
Max. analysis bandwidth 1 GHz
加入詢價
R&S®FSVA3030Frequency range 10 Hz - 30 GHz (2 Hz - 30 GHz with R&S®FSV3-B710 option)
Phase noise < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
Max. analysis bandwidth 1 GHz
加入詢價
R&S®FSVA3044Frequency range 10 Hz - 44 GHz (2 Hz - 44 GHz with R&S®FSV3-B710 option)
Phase noise < –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
Max. analysis bandwidth 1 GHz
加入詢價

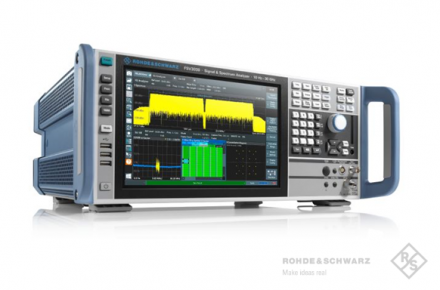

R&S®FSV3000 signal and spectrum analyzer
R&S®FSV3000 signal and spectrum analyzer
●Frequency range from of 10 Hz to 4, 7.5, 13.6, 30 or 44 GHz
●Analysis bandwidth up to 200 MHz
●SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz
●GUI with multi-touch, SCPI recorder and event based actions
●Options for analog and digital signal analysis, including 5G NR
更多型號規格
型號規格描述加入詢價
R&S®FSV3004Frequency range 10 Hz - 4 GHz
Phase noise < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz < –162 dBm/Hz
Max. analysis bandwidth 200 MHz
加入詢價
R&S®FSV3007Frequency range 10 Hz -7.5 GHz
Phase noise < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz < –162 dBm/Hz
Max. analysis bandwidth 200 MHz
加入詢價
R&S®FSV3013Frequency range 10 Hz - 13.6 GHz
Phase noise < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz < –162 dBm/Hz
Max. analysis bandwidth 200 MHz
加入詢價
R&S®FSV3030Frequency range 10 Hz - 30 GHz
Phase noise < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz < –162 dBm/Hz
Max. analysis bandwidth 200 MHz
加入詢價
R&S®FSV3044Frequency range 10 Hz - 44 GHz
Phase noise < –114 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710)
DANL @ 1 GHz < –162 dBm/Hz
Max. analysis bandwidth 200 MHz
加入詢價

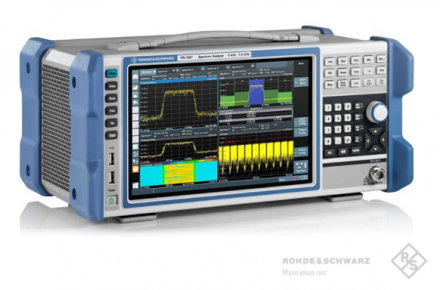

R&S®FPL1000 spectrum analyzer
Experience high performance wherever you take it
R&S®FPL1000 spectrum analyzer
●Frequency range 5 kHz to 26.5 GHz
●SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz
●DANL with preamplifier: typ. –163 dBm from 10 MHz to 2 GHz
●Lightweight with small footprint
●40 MHz analysis bandwidth (option)
更多型號規格
型號規格描述加入詢價
R&S®FPL1003Frequency range 5 kHz - 3 GHz
Phase noise < –108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
DANL @ 1 GHz < –163 dBm/Hz
Max. analysis bandwidth 40 MHz (FPL1-B40)
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPL1007Frequency range 5 kHz - 7.5 GHz
Phase noise < –108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
DANL @ 1 GHz < –163 dBm/Hz
Max. analysis bandwidth 40 MHz (FPL1-B40)
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPL1014Frequency range 5 kHz - 14 GHz
Phase noise < –108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz (FPL1-B40, and FPL1-B11)
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPL1026Frequency range 5 kHz - 26.5 GHz
Phase noise < –108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz (FPL1-B40, and FPL1-B11)
Instrument type Signal and spectrum analyzer
加入詢價

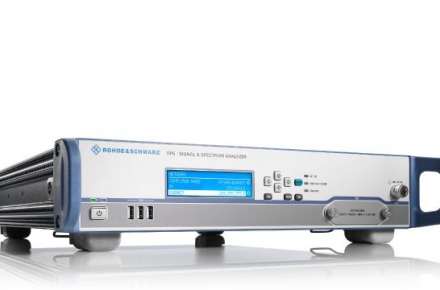

R&S®FPS signal and spectrum analyzer
Compact and fast for automated tests
R&S®FPS signal and spectrum analyzer
●Frequency range up to 4/7/13.6/30/40 GHz
●Up to 160 MHz signal analysis bandwidth
●0.4 dB level measurement uncertainty up to 7 GHz
●Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, 5G, WLAN, vector signal analysis
更多型號規格
型號規格描述加入詢價
R&S®FPS4Frequency range 10 Hz - 4 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 160 MHz
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPS7Frequency range 10 Hz - 7 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 160 MHz
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPS13Frequency range 10 Hz - 13.6 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 160 MHz
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPS30Frequency range 10 Hz - 30 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 160 MHz
Instrument type Signal and spectrum analyzer
加入詢價
R&S®FPS40Frequency range 10 Hz - 40 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 160 MHz
Instrument type Signal and spectrum analyzer
加入詢價

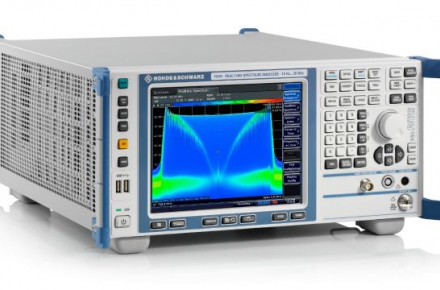

R&S®FSVR Real-time spectrum analyzer
Real-time spectrum analyzer
R&S®FSVR Real-time spectrum analyzer
●Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz
●40 MHz real-time analysis bandwidth
●Triggering on frequency masks
更多型號規格
型號規格描述加入詢價
R&S®FSVR7Frequency range 10Hz - 7 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz
Instrument type Real-time spectrum analyzer
加入詢價
R&S®FSVR13Frequency range 10Hz - 13.6 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz
Instrument type Real-time spectrum analyzer
加入詢價
R&S®FSVR30Frequency range 10Hz - 30 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz
Instrument type Real-time spectrum analyzer
加入詢價
R&S®FSVR40Frequency range 10Hz - 40 GHz
Phase noise < –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)
DANL @ 1 GHz < –160 dBm/Hz
Max. analysis bandwidth 40 MHz
Instrument type Real-time spectrum analyzer
加入詢價

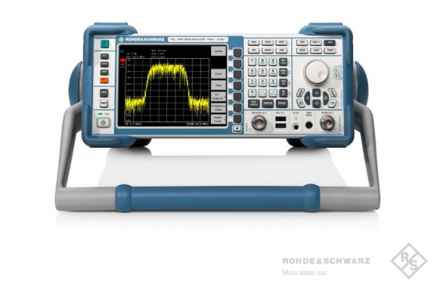

R&S®FSL18 Spectrum analyzer
9 kHz to 18 GHz (overrange 20 GHz)
R&S®FSL18 Spectrum analyzer
●Frequency range from 9 kHz to 18 GHz (overrange 20 GHz)
●Model with and without tracking generator
●Signal analysis bandwidth of 28 MHz
●Lightweight and compact for on-site installation, maintenance and service
●Optional battery operation
更多型號規格
型號規格描述加入詢價
R&S®FSL18Frequency range 9 Khz to 18 Ghz
Phase noise < –95 dBc (1 Hz) (f=500 Mhz, 10Khz offset)
DANL @ 1 GHz < -130dBm/Hz Pre-amplifier off
Max. analysis bandwidth 28 Mhz
Instrument type Spectrum analyzer
加入詢價
R&S®FSL18 (TG)Frequency range 9 Khz to 18 Ghz
Phase noise < –95 dBc (1 Hz) (f=500 Mhz, 10Khz offset)
DANL @ 1 GHz < -130dBm/Hz Pre-amplifier off
Max. analysis bandwidth 28 Mhz
Instrument type Spectrum analyzer and TG
加入詢價

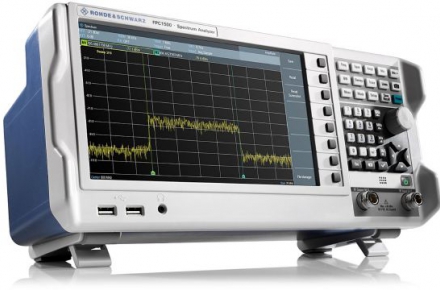

R&S®FPC spectrum analyzer
Unexpected performance in entry class
R&S®FPC spectrum analyzer
●RF performance engineered in Germany
●10.1" WXGA (1366 × 768 pixel) display – largest and highest resolution in class
●Tracking generator and independent CW signal generator
●Built-in VSWR bridge
●One port vector network analyzer with Smith chart display
更多型號規格
型號規格描述加入詢價
R&S®FPC1000Frequency range 5 kHz - 1/2/3 GHz
Phase noise < –92dBc (1Hz) (f=500 MHz, 30kHz offset)
DANL @ 1 GHz <–158 dBm/Hz FPC–B22
Instrument type Spectrum analyzer
加入詢價
R&S®FPC1500Frequency range 5 kHz - 1/2/3 GHz
Phase noise < –92dBc (1Hz) (f=500 MHz, 30kHz offset)
DANL @ 1 GHz <–158 dBm/Hz FPC–B22
Instrument type Spectrum analyzer, TG, VNA
加入詢價

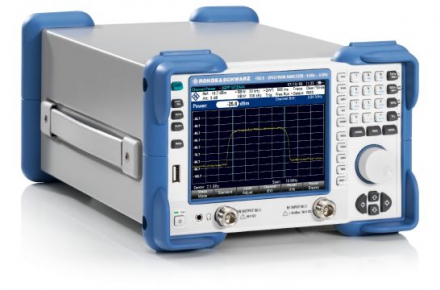

R&S®FSC spectrum analyzer
Professional spectrum analysis – compact and cost-efficient
R&S®FSC spectrum analyzer
●Frequency range from 9 kHz to 6 GHz
●Excellent RF performance ideal for many standard measurement applications
●Tracking generator models available
●Compact form factor
●Low power consumption
更多型號規格
型號規格描述加入詢價
R&S®FSC3Frequency range 9 kHz – 3 GHz
Phase noise –95 dB (1 Hz) (f = 500 MHz, 30 kHz offset)
DANL @ 1 GHz –165 dBm
Instrument type +15 dBm
加入詢價
R&S®FSC6Frequency range 9 kHz – 6 GHz
Phase noise –95 dB (1 Hz) (f = 500 MHz, 30 kHz offset)
DANL @ 1 GHz –165 dBm
Instrument type +15 dBm
加入詢價

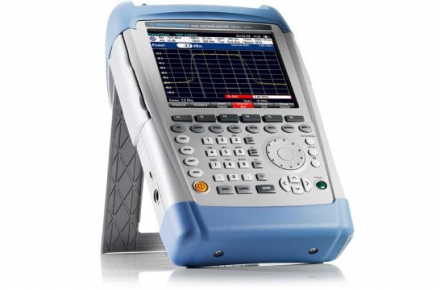

R&S®FSH handheld spectrum analyzer
Where mobility counts
R&S®FSH handheld spectrum analyzer
●9 kHz up to 20 GHz
●Excellent sensitivity (with preamplifier) of < –161 dBm (1 Hz)
●All-in-one analyzer: spectrum analyzer, network analyzer and CAT
●Internal tracking generator, VSWR bridge, bias tee
●Rugged, splash-proof housing for use in the field
R&S®ZVH handheld cable and antenna analyzer
For more efficiency in the field
R&S®ZVH handheld cable and antenna analyzer
●100 kHz up to 3.6 GHz / 8 GHz
●100 dB (typ.) dynamic range for transmission measurements
●Fast and consistent measurements by using preconfiguration wizard
●Remote control via free software or app
●Rugged, splash-proof housing for use in the field

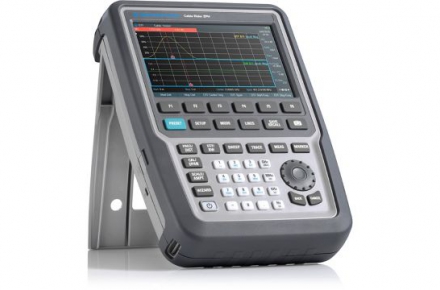

R&S®ZPH cable rider
Expect fast, expect efficient
R&S®ZPH cable rider
●Frequency range up to 3 GHz or 4 GHz, upgrade via keycode
●One-port model features: DTF, return loss, VSWR and cable loss measurements
●Two-port model additionally features S21 measurements, spectrum and interference analysis, AM/FM/ASK/FSK demodulation
●Ideal for field use: up to 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)
R&S®Spectrum Rider FPH  handheld spectrum analyzer
Small form factor to handle big tasks
R&S®Spectrum Rider FPH handheld spectrum analyzer
●5 kHz up to 44 GHz
●Performance: excellent displayed average noise level (DANL)
●Portability: lightweight (from 2.5 kg) and battery lasts for a day's work
●Price: affordable price
●User experience redefined thanks to multitouch interface
R&S®Server-Based Testing
R&S®Server-Based Testing
●Optimal for high-throughput repetitive testing
●Easy to integrate in existing environments through industry-standard API
●Excellent scalability: Deployable on one or multiple servers

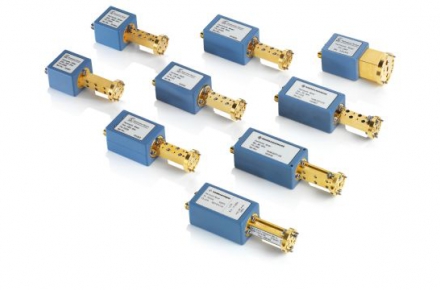

RPG FS-Zxx Harmonic mixers
RPG FS-Zxx Harmonic mixers
●Frequency range extension up to 500 GHz
●Supported by the R&S®FSW, R&S®FSV3000 and R&S®FSVA3000 signal and spectrum analyzers and the R&S®FSWP phase noise analyzer and VCO tester
●Up to 4.3 GHz analysis bandwidth with the R&S®FSW and option R&S®FSW-B4001
●Low conversion loss with reduced inband ripple
●Excellent VSWR with isolated input port
●Radiometer physics

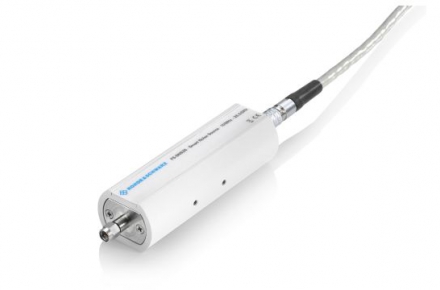

R&S®FS-SNS Smart noise source
R&S®FS-SNS Smart noise source
●Frequency range up to 18 GHz, 26 GHz, 40 GHz, 55 GHz or 67 GHz
●supported by the R&S®FSW, R&S®FSV3000, R&S®FSVA3000, R&S®FPL1000 signal and spectrum analyzers, the R&S®FSWP phase noise analyzer and VCO tester, the ●R&S®FSMR3000 measuring receiver and the R&S®ZNL Network analyzer
●Automatic loading of ENR table
●ENR uncertainty and reflection coefficients table for automatic uncertainty calculation
●Automatic temperature readout for improved accuracy
R&S®FExx External Frontends
R&S®FExx External Frontends
●Extended frequency range of Signal analyzer and Vector Signal Generator
●Covered frequency range from 24 GHz to 50 GHz
●Minimized cable losses due to up and downconversion directly at the DUT
●Increased performance of the test setup

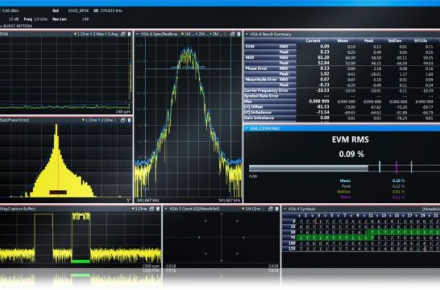

R&S®VSE software
Signal analysis software – Cloud ready
R&S®VSE software
●Supports mobile and wireless communications standards
●Advanced and multi-channel pulse analysis
●Fast measurements with parallel analysis & Supporting floating licenses
●Control multiple instruments from one PC
●Supports R&S®FSL / FPS / FPL1000 / FSV3000 / FSVA3000 / FSV / FSVA / FSW / FSWP / NRQ / RTP / RTO / ZNL / ETL
更多型號規格
型號規格描述加入詢價
R&S®VSENumber of simultaneously connected devices 128
Number of measurement groups 30
Number of measurement channels in one group 30
加入詢價
R&S®VSENumber of simultaneously connected devices 1
Number of measurement groups 1
Number of measurement channels in one group 3
加入詢價
