測試與量測

RF and microwave power meters

RF & microwave power meters

Discover the RF power meter & microwave power meter and sensor portfolio from Rohde & Schwarz for ultra-high measurement accuracy and speed

Our RF & microwave power sensors ensure precise and reliable measurements. They provide the highest measurement accuracy and speed, simple operation, technological leadership in thermal, diode and OTA core measurement elements as well as traceability to national standards. This commitment makes Rohde & Schwarz the prime choice in accurate power measurement. From general purpose, directional, microwave, to even space-qualified or frequency selective power sensors – Rohde & Schwarz has your application covered.

R&S®NRPxxS/SN/SN-V three-path diode power sensors
USB and LAN Power Sensors
R&S®NRPxxS/SN/SN-V three-path diode power sensors
●Fast and accurate power measurements for CW and modulated signals
●100,000 readings/s
●Control and monitoring via LAN and USB
●Sensors for high-power applications
●Flexible operation with R&S®NRX base unit
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRP8SFrequency range 10 MHz - 8 GHz
Level range -70 dBm - +23 dBm
LAN interface x
Connector type N (m)		加入詢價
R&S®NRP8SNFrequency range 10 MHz - 8 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type N (m)		加入詢價
R&S®NRP18SFrequency range 10 MHz - 18 GHz
Level range -70 dBm - +23 dBm
LAN interface x
Connector type N (m)		加入詢價
R&S®NRP18SNFrequency range 10 MHz - 18 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type N (m)		加入詢價
R&S®NRP33SFrequency range 10 MHz - 33 GHz
Level range -70 dBm - +23 dBm
LAN interface x
Connector type 3.5 mm (m)		加入詢價
R&S®NRP33SNFrequency range 10 MHz - 33 GHz
Level range -70 dBm - +20dBm
LAN interface ✓
Connector type 3.5 mm (m)		加入詢價
R&S®NRP40SFrequency range 50 MHz - 40 GHz
Level range -70 dBm - +20 dBm
LAN interface x
Connector type 2.92 mm (m)		加入詢價
R&S®NRP40SNFrequency range 50 MHz - 40 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type 2.92 mm (m)		加入詢價
R&S®NRP50SFrequency range 50 MHz - 50 GHz
Level range -70 dBm - +20 dBm
LAN interface x
Connector type 2.4 mm (m)		加入詢價
R&S®NRP50SNFrequency range 50 MHz - 50 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type 2.4 mm (m)		加入詢價
R&S®NRP67SFrequency range 50 MHz - 67 GHz
Level range -70 dBm - +20 dBm
LAN interface x
Connector type 1,85 mm		加入詢價
R&S®NRP67SNFrequency range 50 MHz - 67 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type 1,85 mm		加入詢價
R&S®NRP18S-10Frequency range 10 MHz - 18 GHz
Level range -60 dBm - +33 dBm
LAN interface x
Connector type N (m)		加入詢價
R&S®NRP18S-20Frequency range 10 MHz - 18 GHz
Level range -50 dBm - +42 dBm
LAN interface x
Connector type N (m)		加入詢價
R&S®NRP18S-25Frequency range 10 MHz - 18 GHz
Level range -45 dBm - +45 dBm
LAN interface x
Connector type N (m)		加入詢價
R&S®NRP90SFrequency range 50 MHz - 90 GHz
Level range -70 dBm - +20 dBm
Connector type 1.35 mm (m)		加入詢價
R&S®NRP90SFrequency range 50 MHz - 90 GHz
Level range -70 dBm - +20 dBm
Connector type 1.00 mm (m)		加入詢價
R&S®NRP90SNFrequency range 50 MHz - 90 GHz
Level range -70 dBm - +20 dBm
LAN interface ✓
Connector type 1.35 mm		加入詢價
R&S®NRP33SN-VFrequency range 10 MHz - 33 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type 3.5 mm (m)		加入詢價
R&S®NRP67SN-VFrequency range 50 MHz - 67 GHz
Level range -70 dBm - +20 dBm
LAN interface ✓
Connector type 1.85 mm		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

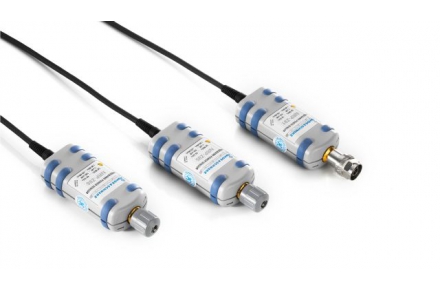

R&S®NRP-Z8x wideband power sensors
R&S®NRP-Z8x wideband power sensors
●Outstanding dynamic range and accuracy
●High resolution mode
●Highest measurement speed
●Automatic pulse analysis
●Statistical analysis
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRP-Z81Frequency range 50 MHz - 18 GHz
Level range -60 dBm - +20 dBm
Connector type N (m)		加入詢價
R&S®NRP-Z85Frequency range 50 MHz - 40 GHz
Level range -60 dBm - +20 dBm
Connector type 2.92 mm (m)		加入詢價
R&S®NRP-Z86Frequency range 50 MHz - 40 GHz
Level range -60 dBm - +20 dBm
Connector type 2.4 mm (m)		加入詢價
R&S®NRP-Z86Frequency range 50 MHz - 44 GHz
Level range -60 dBm - +20 dBm
Connector type 2.4 mm (m)		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

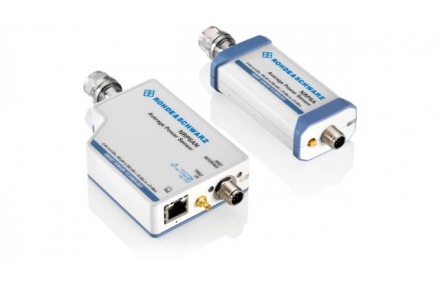

R&S®NRPxxA/AN
designed for EMC applications
R&S®NRPxxA/AN
●Measurement range: -70 dBm to +23 dBm
●Frequency range: 8 kHz to 18 GHz
●Specially designed for EMC applications
●Measurement of continuous average power
●93 dB dynamic range for CW and modulated signals
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRP6AFrequency range 8 kHz - 6 GHz
Level range -70 dBm - +23 dBm
LAN interface X
Connector type N (m)		加入詢價
R&S®NRP6ANFrequency range 8 kHz - 6 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type N (m)		加入詢價
R&S®NRP18AFrequency range 8 kHz - 18 GHz
Level range -70 dBm - +23 dBm
LAN interface X
Connector type N (m)		加入詢價
R&S®NRP18ANFrequency range 8 kHz - 18 GHz
Level range -70 dBm - +23 dBm
LAN interface ✓
Connector type N (m)		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

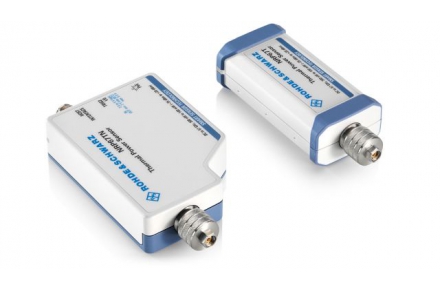

R&S®NRPxxT/TN/TWG Thermal Power Sensors
Highest measurement accuracy
R&S®NRPxxT/TN/TWG Thermal Power Sensors
●Dynamic range: –35 dBm to +20 dBm
●Frequency range: DC to 110 GHz
●Control and monitoring via USB and LAN (R&S®NRPxxTN only)
●Outstanding performance for reference applications
●Excellent impedance matching
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRP18TFrequency range DC - 18 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type N(m)		加入詢價
R&S®NRP18TNFrequency range DC - 18 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type N(m)		加入詢價
R&S®NRP33TFrequency range DC - 33 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 3.5 mm (m)		加入詢價
R&S®NRP33TNFrequency range DC - 33 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type 3.5 mm (m)		加入詢價
R&S®NRP40TFrequency range DC - 40 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 2.92 mm (m)		加入詢價
R&S®NRP40TNFrequency range DC - 40 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type 2.92 mm (m)		加入詢價
R&S®NRP50TFrequency range DC - 50 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 2.4 mm (m)		加入詢價
R&S®NRP50TNFrequency range DC - 50 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type 2.4 mm (m)		加入詢價
R&S®NRP67TFrequency range DC - 67 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 1.85 mm (m)		加入詢價
R&S®NRP67TNFrequency range DC - 67 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type 1.85 mm (m)		加入詢價
R&S®NRP90TFrequency range DC - 90 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 1.35 mm (m)		加入詢價
R&S®NRP90TNFrequency range DC - 90 GHz
Level range- 35 dBm - +20 dBm
LAN interface ✓
Connector type 1.35 mm (m)		加入詢價
R&S®NRP110TFrequency range DC - 110 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type 1.00 mm (m)		加入詢價
R&S®NRP75TWGFrequency range 50 GHz - 75 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type WR-15		加入詢價
R&S®NRP90TWGFrequency range 60 GHz - 90 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type WR-12		加入詢價
R&S®NRP110TWGFrequency range 75 GHz - 110 GHz
Level range- 35 dBm - +20 dBm
LAN interface X
Connector type WR-10		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

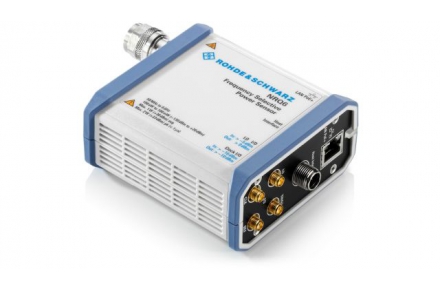

R&S®NRQ6 frequency selective power sensor
A milestone in power measurements
R&S®NRQ6 frequency selective power sensor
●Frequency selective power measurements from 50 MHz to 6 GHz
●Power measurement range: -130 dBm to +20 dBm
●100 MHz measurement bandwidth
●I/Q data capturing for RF vector signal analysis
●Phase coherent measurements for low-power modulated signals
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRQ6Frequency range50 MHz - 6 GHz
Level range -130 dBm - +20 dBm
Dynamic range (sensor dependent) up to 150 dBm (RBW dependent)
LAN interface ✓
Connector typeN (m)		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

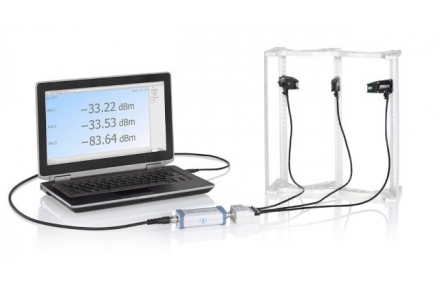

R&S®NRPM OTA power measurement solution
R&S®NRPM OTA power measurement solution
●Frequency range from 18 GHz to 90 GHz
●Extremely fast RX list mode
●For 5G, WLAN IEEE 802.11ad and IEEE 802.11ay as well as automotive radar
●Fully calibrated antenna module with integrated diode detector
●Scalable to customer requirements
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRPM OTA power measurement solution加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE

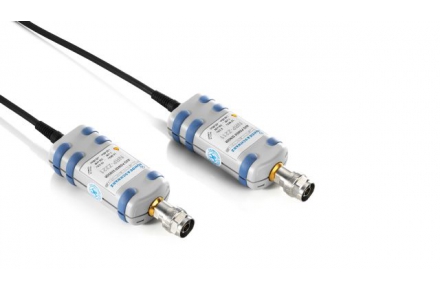

R&S®NRP-Z2x1 two-path diode power sensors
R&S®NRP-Z2x1 two-path diode power sensors
Measurement range: -60 dBm to +20 dBm (1 nW to 100 mW)
Frequency range: 10 MHz to 18 GHz
Best price/performance ratio in its class
80 dB dynamic range for CW and modulated signals
Two-path diode power sensor with enhanced inter-range performance
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®NRP-Z211Frequency range 10 MHz - 8 GHz
Level range -60 dBm - +20 dBm
Connector type N (m)
Cable length 0.4 m		加入詢價
R&S®NRP-Z211Frequency range 10 MHz - 8 GHz
Level range -60 dBm - +20 dBm
Connector type N (m)
Cable length 1.6 m		加入詢價
R&S®NRP-Z221Frequency range 10 MHz - 18 GHz
Level range -60 dBm - +20 dBm
Connector type N (m)
Cable length 1.6 m		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
