Wireless tester - network emulator

Rohde & Schwarz network emulator portfolio

Ensure precise measurements of your LTE and 5G devices

Rohde & Schwarz offers class-leading signaling testers. We established our position as leading supplier of LTE communications testers with the popular, all-in-one R&S®CMW500 platform. Now we are building on the expertise that enabled its success with the high-performance R&S®CMX500 radio communication tester.

Secure the industry-leading wireless network emulators for your 5G NR and legacy technology challenges – from R&D design stages up to end-to-end application testing, production and conformance tests.

R&S®CMX500 5G radio communication tester
R&S®CMX500 5G radio communication tester
●LTE, 5G FR1 frequency range up to 8 GHz and FR2 milimeter-wave frequency range up to 50 GHz in one instrument
●Support of 5G stand-alone mode / non-stand-alone mode
●Capable of large variety of present and future LTE and 5G 3GPP band combinations
●Future proof modular and scalable HW-architecture
●Web-based CMsquares user interface for RF-, functional-, application- and protocol test
更多型號規格
型號規格描述加入詢價
R&S®CMX500 5G radio communication testerThe next generation of mobile radio testing加入詢價

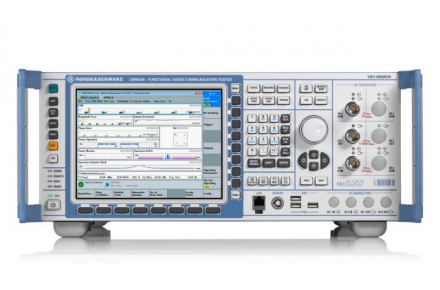

R&S®CMW500 wideband radio communication tester
R&S®CMW500 wideband radio communication tester
●Multi-RAT signaling: LTE, WCDMA, GSM, WLAN, Bluetooth
●LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA
●WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test
●Internal server for application testing
更多型號規格
型號規格描述加入詢價
R&S®CMW500 wideband radio communication tester加入詢價
R&S®CMW290
Value-priced IoT tester for cellular and non-cellular technologies
R&S®CMW290
●NB-IoT (R13-15, Cat. NB1/2) and LTE-M (R13-14,Cat.1,0,M1,M2)
●11Legacy technology tests of GSM, WCDMA and LTE
●WLAN a / b / g / n / ac / ax and Bluetooth signaling tests
●Internal server for application and e2e throughput testing
●Customizable, simple R&S®CMWrun test sequencer
更多型號規格
型號規格描述加入詢價
R&S®CMW290Value-priced IoT tester for cellular and non-cellular technologies加入詢價

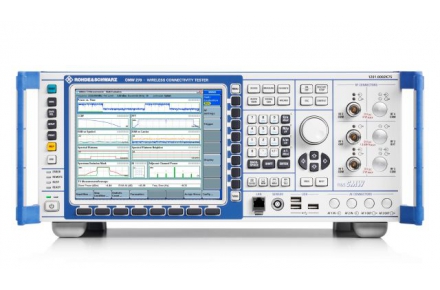

R&S®CMW270 wireless connectivity tester
The expert for non-cellular technologies
R&S®CMW270 wireless connectivity tester
●Bluetooth RF tester for Low Energy (BLE), Basic Rate and Enhanced Data Rate qualified by the Bluetooth-SIG
●WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test
●Dual tester concept with multiple-standard RF measurements for WLAN SISO/MIMO and Bluetooth
●Server for WLAN application testing and customizable R&S®CMWrun test sequencer
●General purpose ARB generator for Bluetooth, WLAN, GNSS and various broadcast technologies
更多型號規格
型號規格描述加入詢價
R&S®CMW270 wireless connectivity testerThe expert for non-cellular technologies加入詢價
