The Rohde & Schwarz phase noise analyzer portfolio

High sensitivity, speed, and versatility

The phase noise analyzer portfolio from Rohde & Schwarz offers an affordable, mid-range solution with high sensitivity and fast measurements as well as high-end ultra-high-sensitivity solutions with advanced measurements modes. Ideal for phase noise analysis and VCO tests, the industry-leading solutions enable two-path phase noise analysis with real-time cross correlation and fast VCO characterization with built-in low-noise DC sources. Additionally, high-end signal and spectrum analysis can be added into a single box.

Designed by the RF experts at Rohde & Schwarz, all our phase noise analyzers feature exceptional sensitivity, high value and excellent reliability.

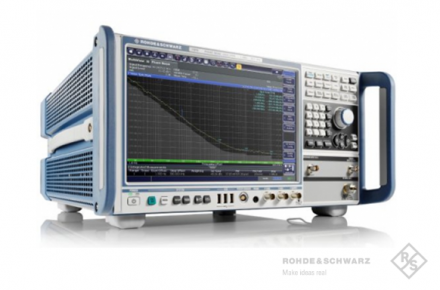

R&S®FSWP Phase noise analyzer and VCO tester
High‑end analysis of signal sources and components
R&S®FSWP Phase noise analyzer and VCO tester
● High end signal and spectrum analyzer and phase noise tester in one box
● Very high sensitivity for phase noise measurements even on pulsed signals through cross correlation with unrivaled performance close to carrier
● Frequency range from 1 MHz up to 50 GHz, 500 GHz with external mixers
● Internal source for measuring residual phase noise, also on pulsed signals
● Simultaneous measurement of phase noise and amplitude noise
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®FSWP8Frequency range 1 MHz - 8 GHz
Phase noise < –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Max. analysis band width 320 MHz
Instrument type Phase noise analyzer and VCO tester		加入詢價
R&S®FSWP26Frequency range 1 MHz - 26.5 GHz
Phase noise < –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Max. analysis band width 320 MHz
Instrument type Phase noise analyzer and VCO tester		加入詢價
R&S®FSWP50Frequency range 1 MHz - 50 GHz
Phase noise < –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Max. analysis band width 320 MHz
Instrument type Phase noise analyzer and VCO tester		加入詢價
不確定需求規格?立即點擊讓我們協助您 CLOSE
R&S®FSPN Phase noise analyzer and VCO tester
Unrivaled sensitivity meets high speed
R&S®FSPN Phase noise analyzer and VCO tester
●Pure phase noise analyzer and VCO tester with high measurement speed due to hardware-implemented real-time cross-correlation
●Very high sensitivity for phase noise measurements thanks to dual synthesizers and cross-correlation included in the base unit, typ. –163 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
●Frequency range from 1 MHz to 26.5 GHz
●Extremely low‑noise internal DC sources for automatic VCO characterization
●Simultaneous measurement of phase noise and amplitude noise
詳細規格 型號清單/詢價
更多型號規格
型號規格描述加入詢價
R&S®FSPN8Frequency range 1 MHz - 8 GHz
Phase noise < –163 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Instrument type Phase noise analyzer and VCO tester		加入詢價
R&S®FSPN26Frequency range 1 MHz - 26.5 GHz
Phase noise < –163 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Instrument type Phase noise analyzer and VCO tester		加入詢價
